The LiveControl Road Kit is designed for easy setup and breakdown for one-off events. All core components are included and built within a "Flight Case" design, meant to be transported and absorb shock.

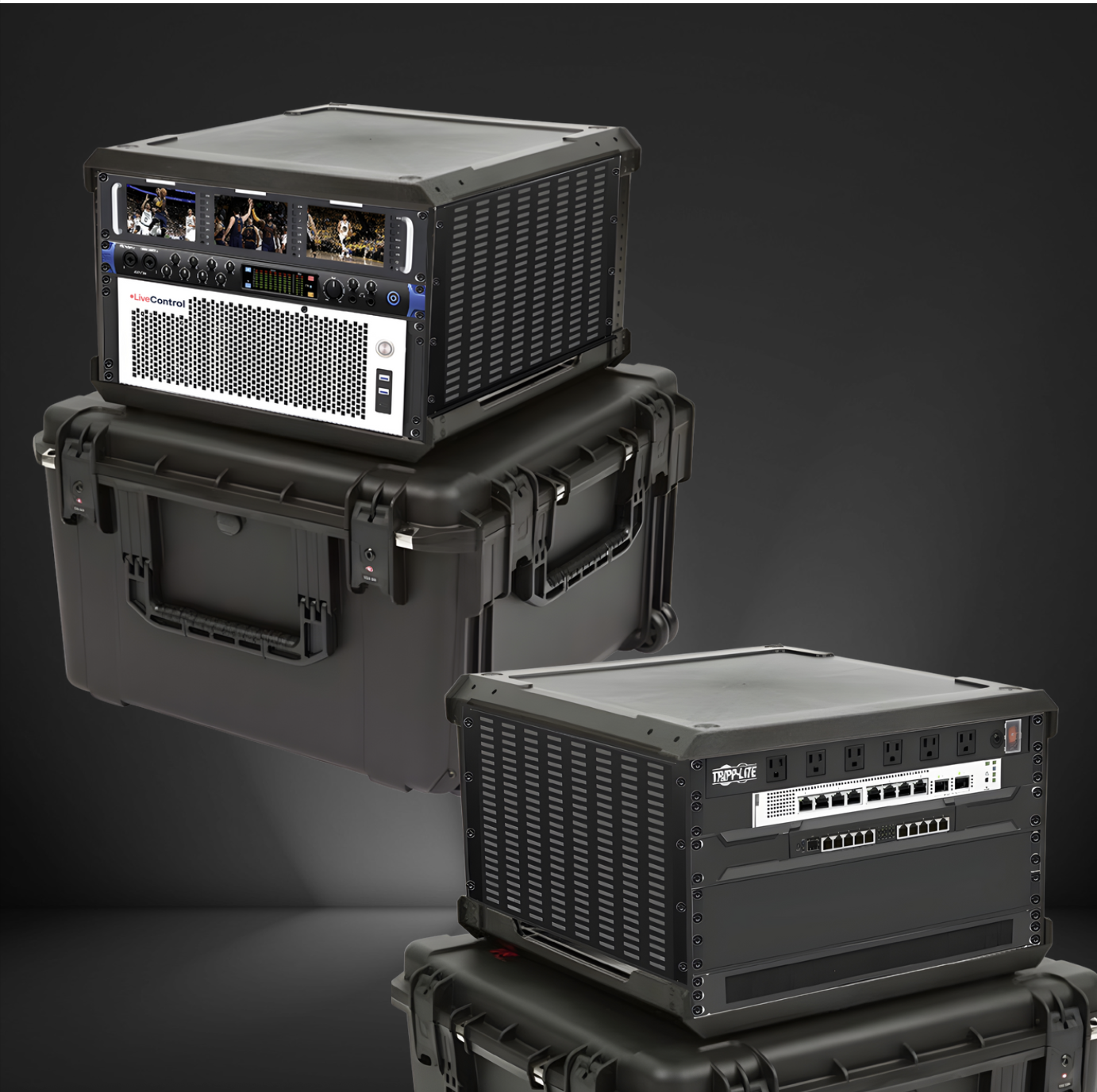

Below is a picture of our IP Road Kit (3 monitor display rack sold separately, exact version may vary depending on requirements):
The Road Kit itself includes:
- LiveControl Encoder (Rack Mounted)
- Audio Interface with 2 channel inputs (Stereo XLR or 1/4")
- Pre-configured Router for IP camera transmission
- Pre-configured PoE+ network switch (8 ports)
- Portable Field Monitor, Mouse, and Keyboard for backup troubleshooting
- 100' of snagless Cat 6 (for internet)
- Power supply
Most customers choose to purchase/lease a portable Camera Kit, along with the Road Kit.
Each Camera Kit comes with the following:
- Pelican Case
- PTZ Camera(s)
- 100' of snagless Cat 6 (per camera)
- Tripod (per camera)
Each kit is custom built for your specific use-case, with all components built for quick and easy setup done by your team.
Setup Instructions:
- Unbox the LiveControl Road Kit from the flight case and place it safely on the ground or on a table.
- Connect the Road Kit to the internet using the included Cat 6 cable. Plug the cable that provides internet into Port 1 on the router located on the back of the Road Kit.
- Plug the included power cable (blue Power-Con) into the back of the Road Kit and connect it to a power outlet. The unit will power on automatically.
- Set up your cameras on the provided tripods. Using the included Cat 6 cables, run a cable from each camera to any open port on the white network switch on the back of the Road Kit. The cameras will power on automatically.
- Connect your audio source to the front of the audio interface using either XLR or quarter inch.
- Text or call LiveControl Support at 310-361-4169 to confirm your kit is online and ready.
