This guide provides a complete overview of installing and connecting IP PTZ cameras with the LiveControl encoder and network equipment. It includes a video walkthrough, equipment list, connection diagram, and step-by-step setup instructions to ensure a smooth installation.

Video Overview:

Packing Lists

There are three packing options depending on what you ordered. This may arrive all in the same box.

Encoder Kit List

All below equipment comes standard with LiveControl Equipment Lease. Specific makes and models subject to change based on availability and customer's specific needs.

IP PTZ Camera Kit List - Optional

For plans that include leased or purchased PTZ Cameras, the below is included. Specific make and model subject to change based on availability and customer's specific needs.

Installation Kit List - Optional

For plans that include installation, the below is included. Specific make and model subject to change based on availability and customer's specific needs.

Connection Diagram

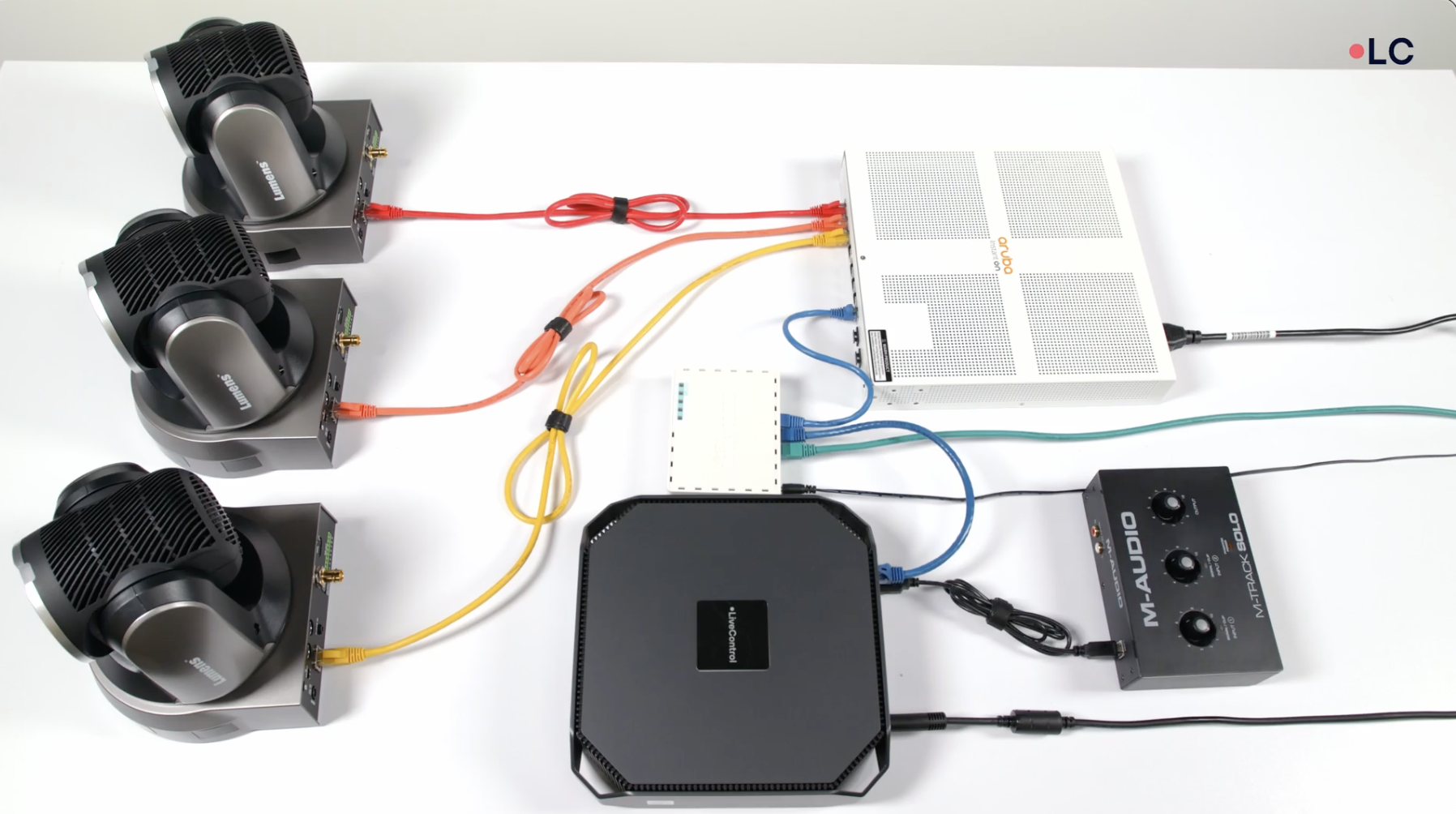

Below gives you a visual of how everything is connected before getting started.

Step-by-Step Installation:

*Please ensure that continuous power (power that remains constant 24/7) is provided to all equipment as we schedule updates outside of your specific event hours.

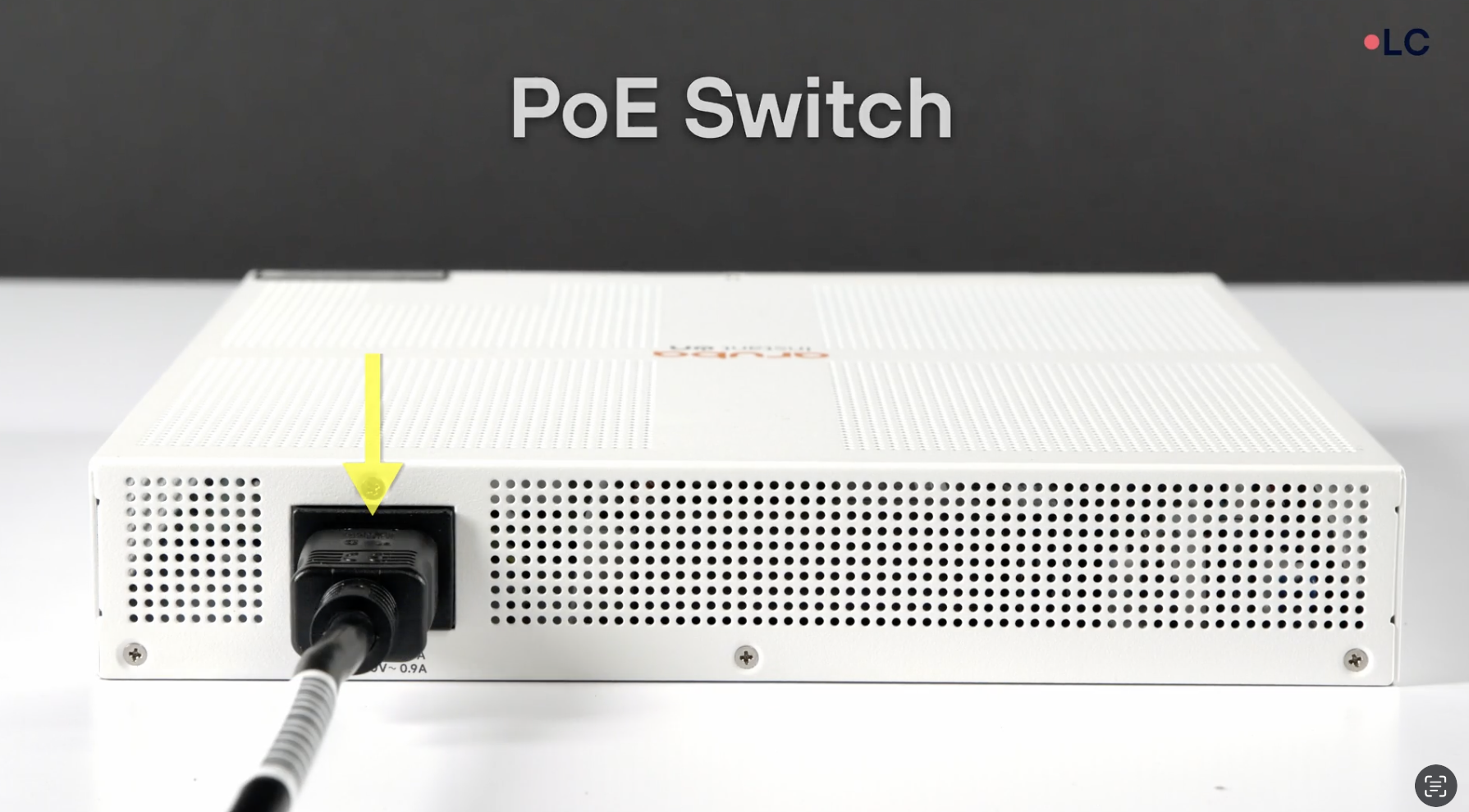

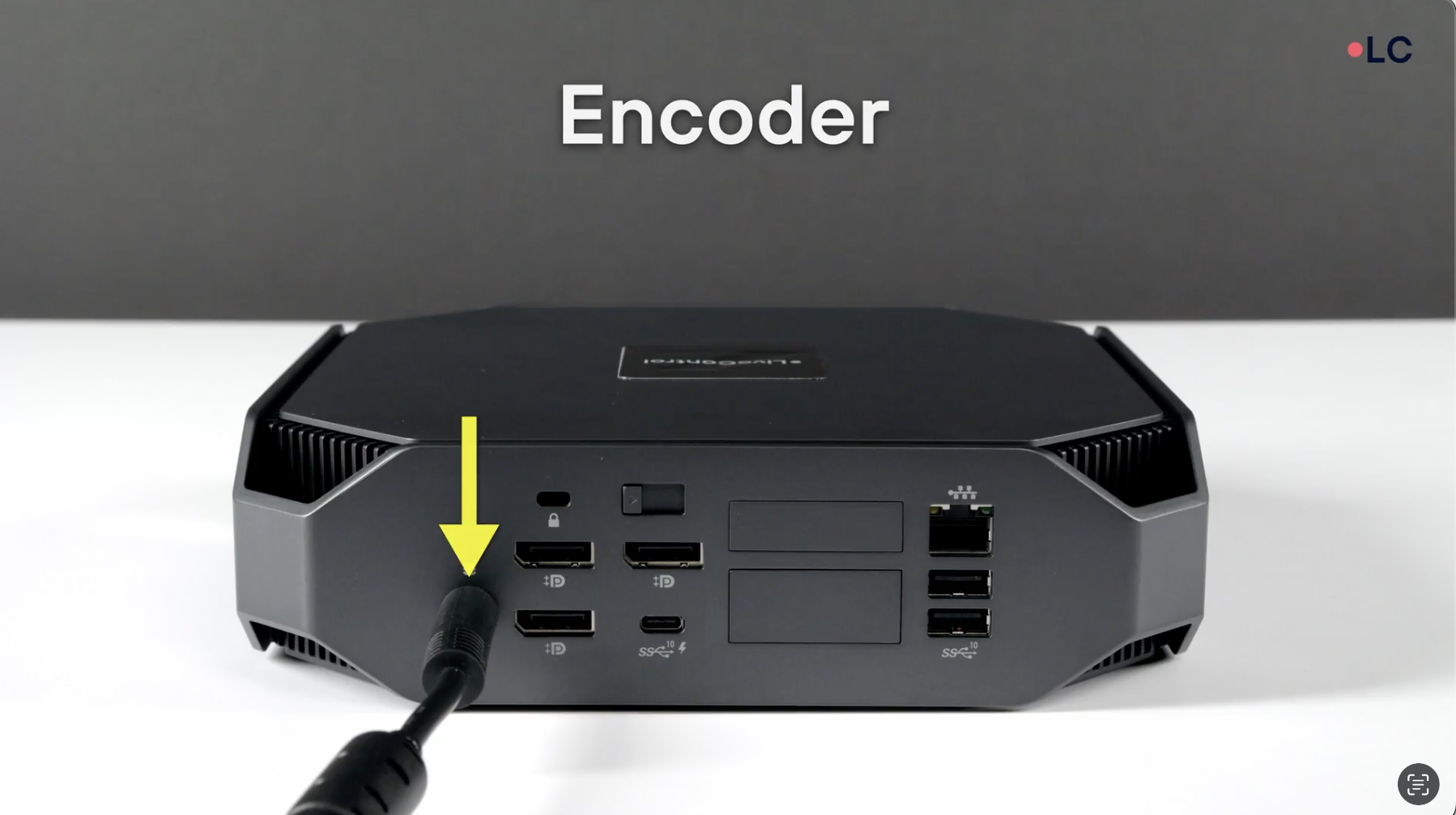

Step 1: Connect Power to the Router, Switcher, and LiveControl Encoder

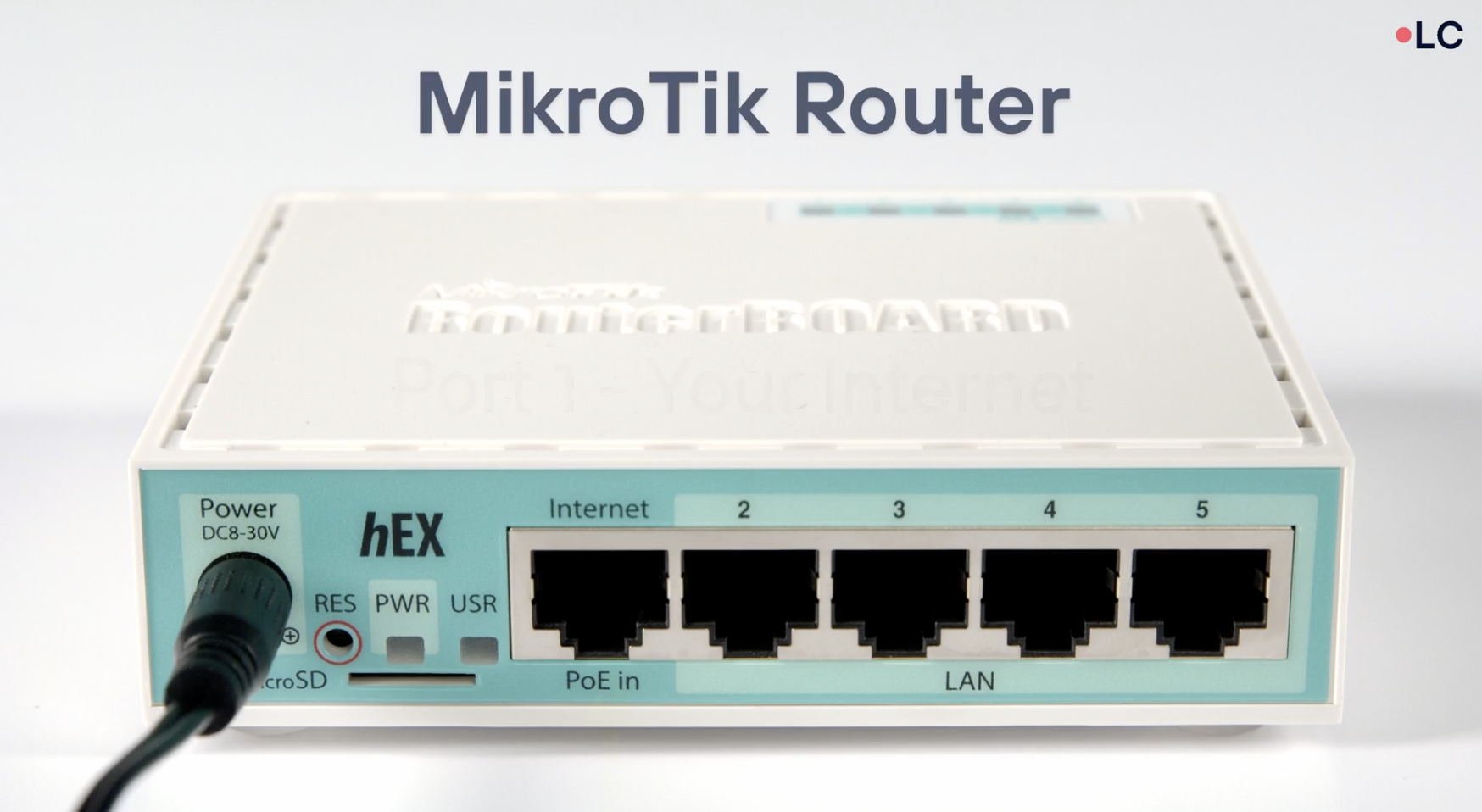

Step 2: On the Router, identify the port numbers and connect each port to following:

Router Port Number	Connect To
Port 1 (Internet)	Connect this to your internet connection
Port 2	Connect this to the LiveControl Encoder with included Cat 6 Cable
Port 3	Connect this to port 8 on the Network Switch
Port 4	[Leave Blank]
Port 5	Optional Graphics Add-On [Leave Blank unless directed otherwise]

Step 3: On the switch, identify the port numbers and connect each port to following:

Switch Port Number	Connect To

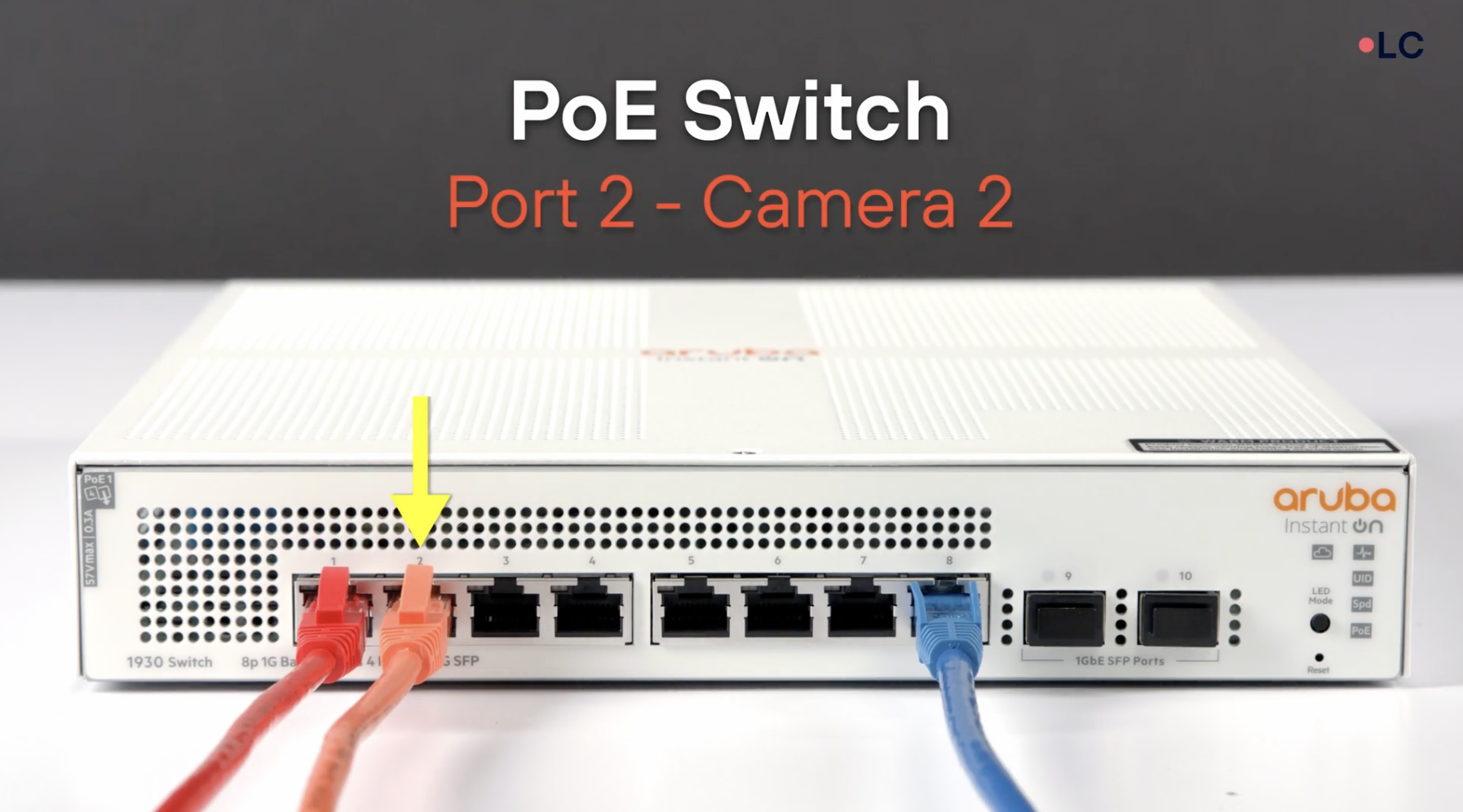

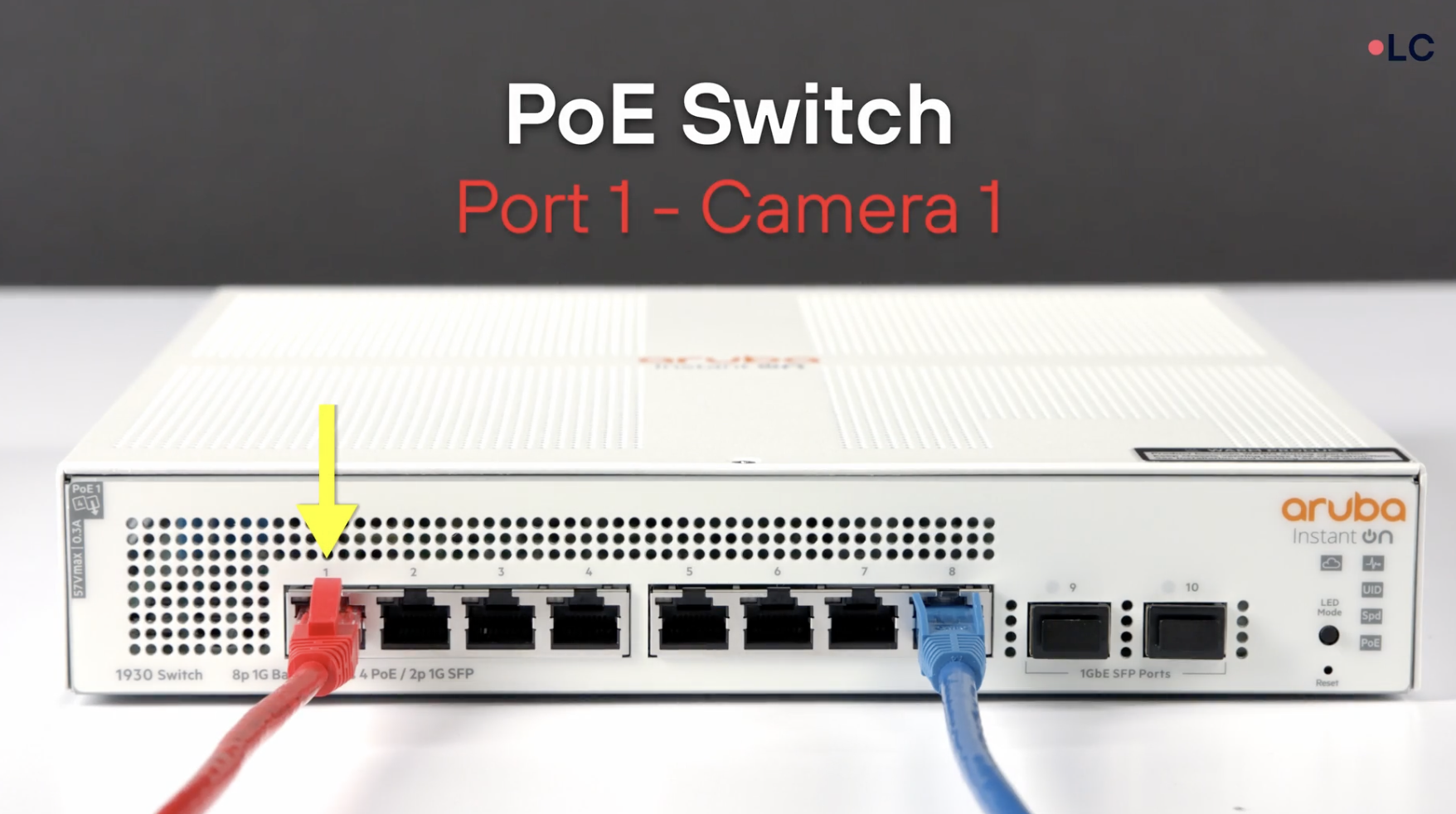

Port 1	Camera 1
Port 2	Camera 2 (optional)
Port 3	Camera 3 (optional)
Port 4	Camera 4 (optional)
Port 5	[Leave Blank]
Port 6	[Leave Blank]
Port 7	[Leave Blank]
Port 8	Router

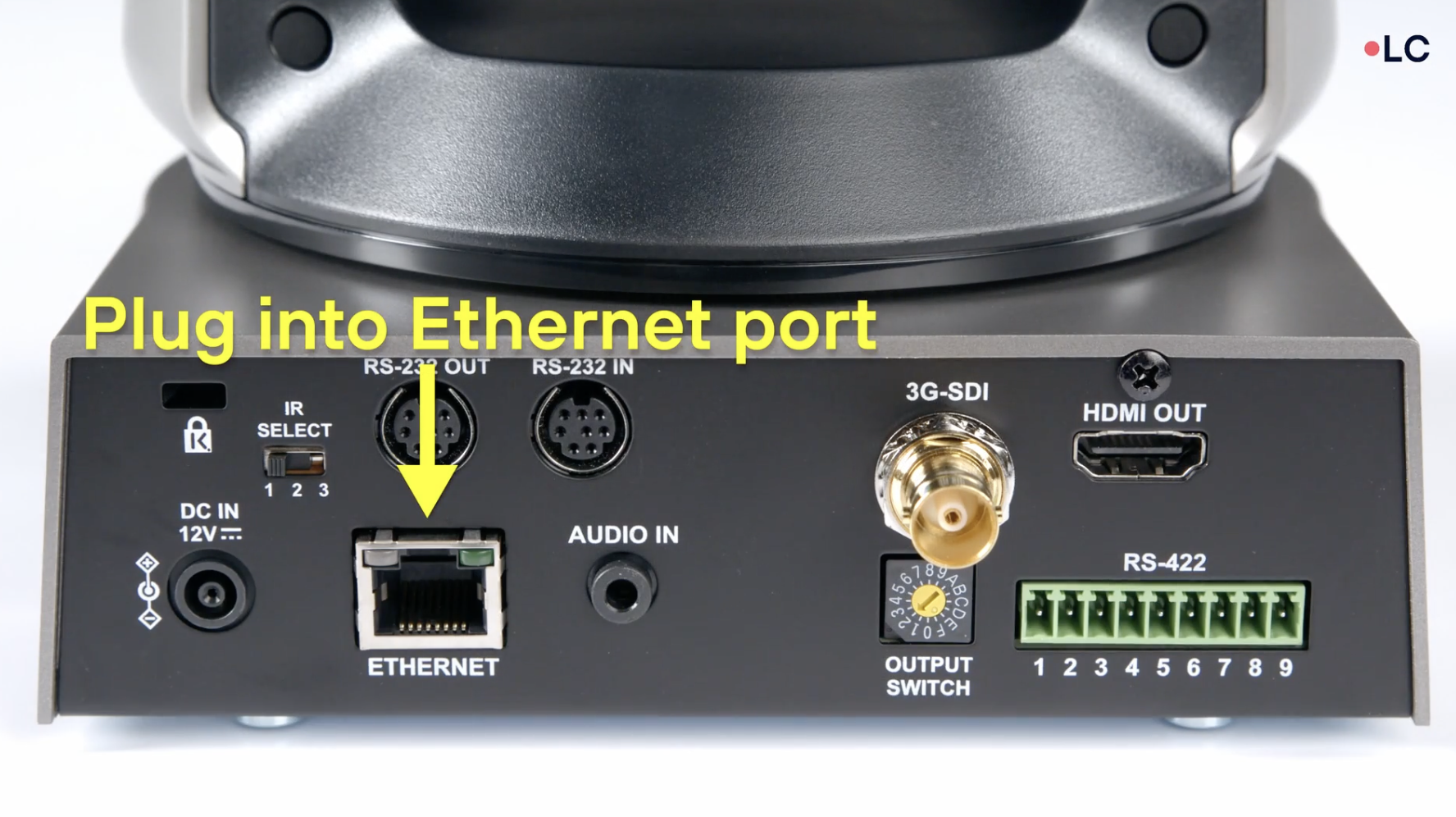

Step 4: Connect port 1 to the back of "Camera 1". See below for an example ethernet port on the camera. If you have more cameras, continue this process for each camera.

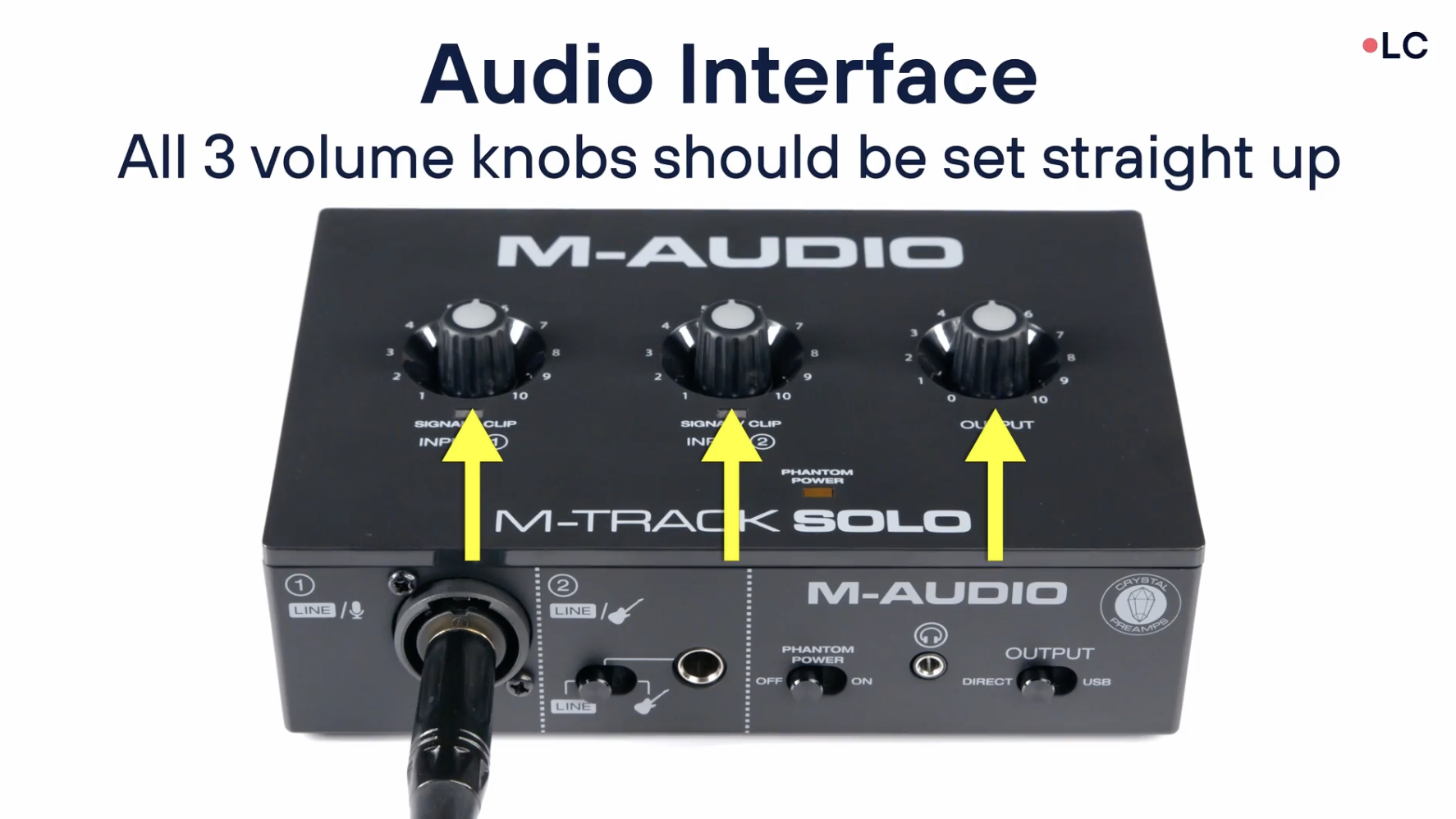

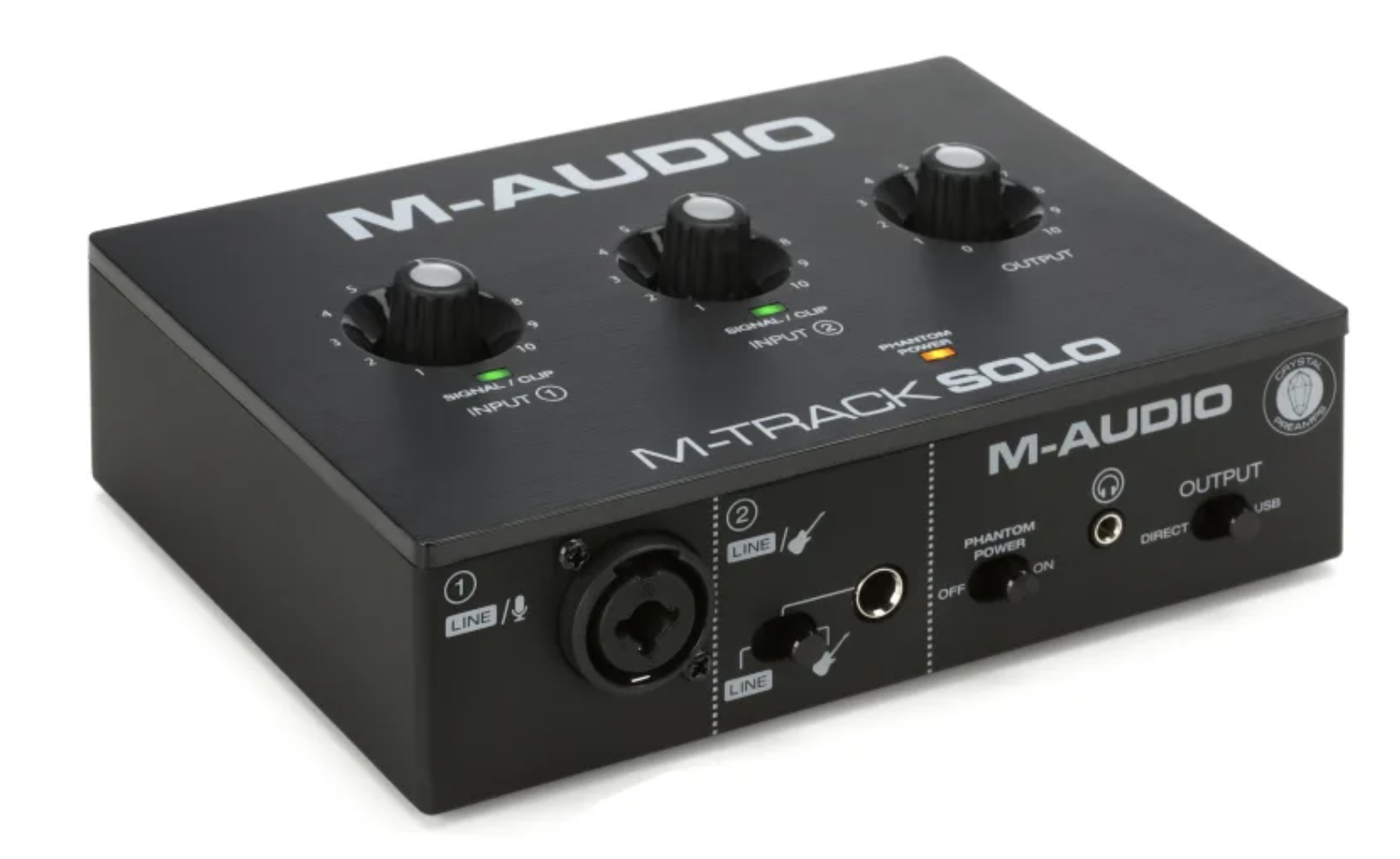

Step 5: Connect your soundboard to the provided audio interface via an XLR or 1/4" audio connection. Ensure all knobs are set straight up.

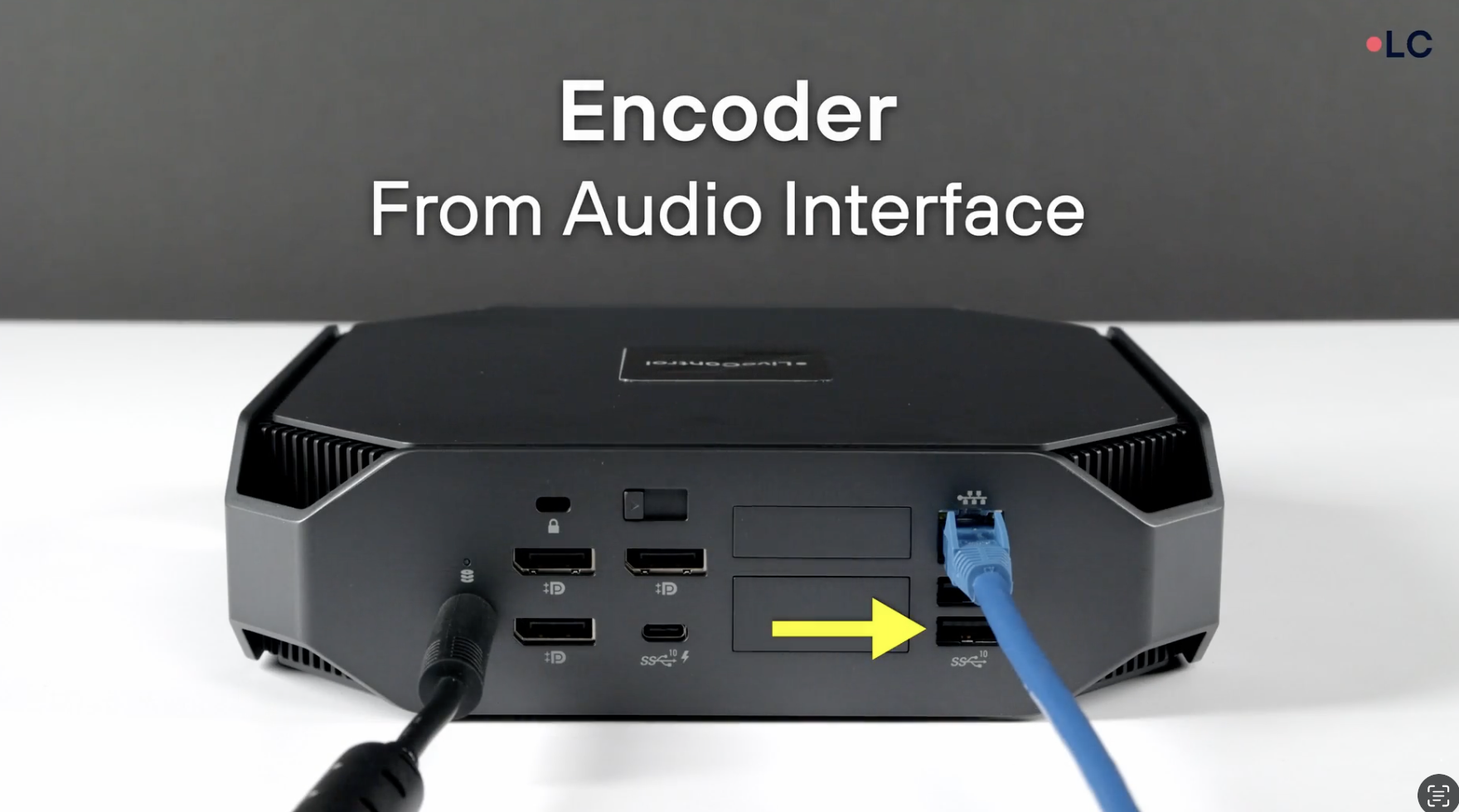

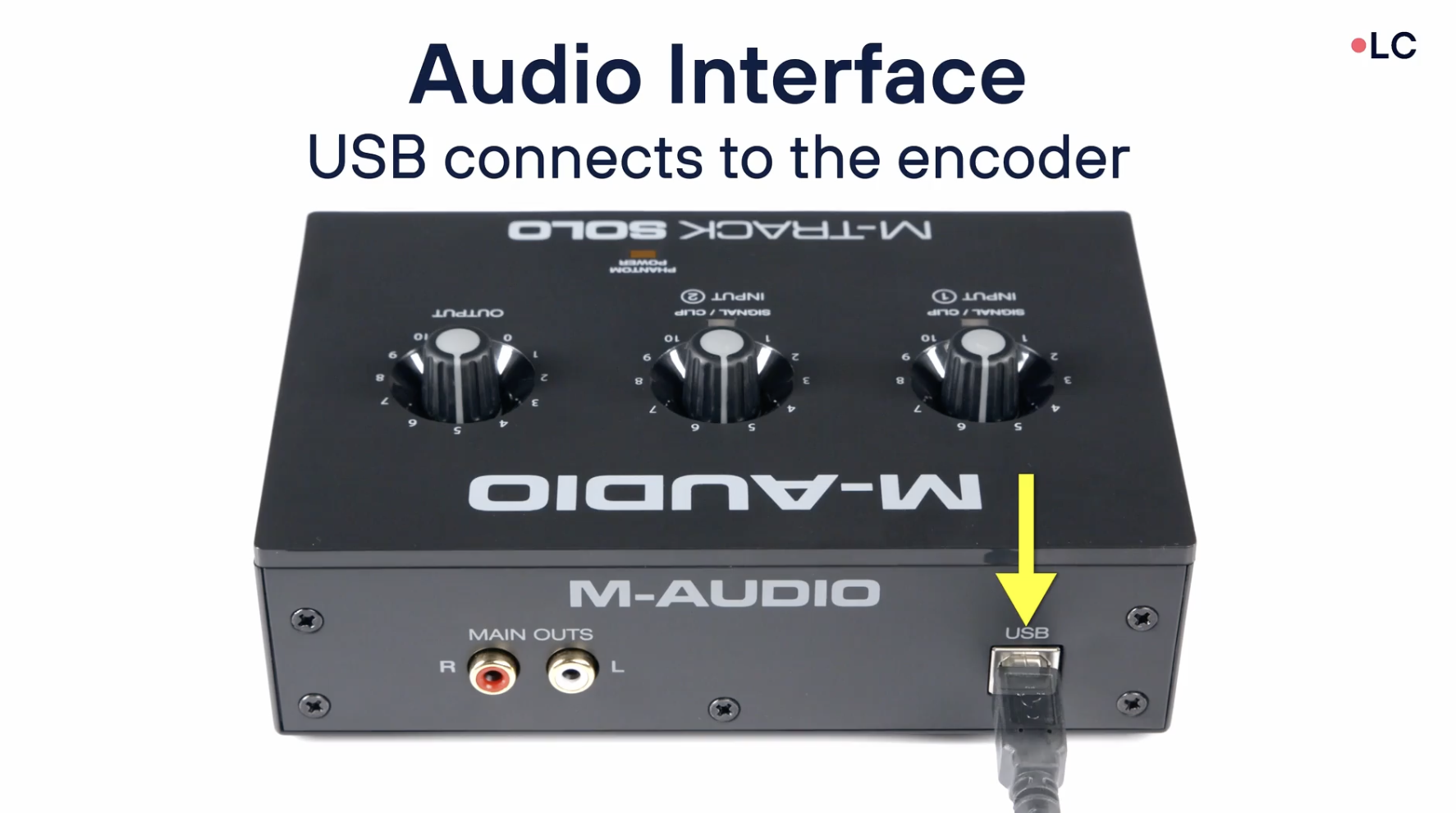

Step 6: Connect the USB cable to the back of the Audio Interface and the other end to the LiveControl Encoder.

The client that they may use headphones connected to the headphone jack on the front of the interface (labeled with the headphone icon) to monitor the audio feed being sent to our encoder.

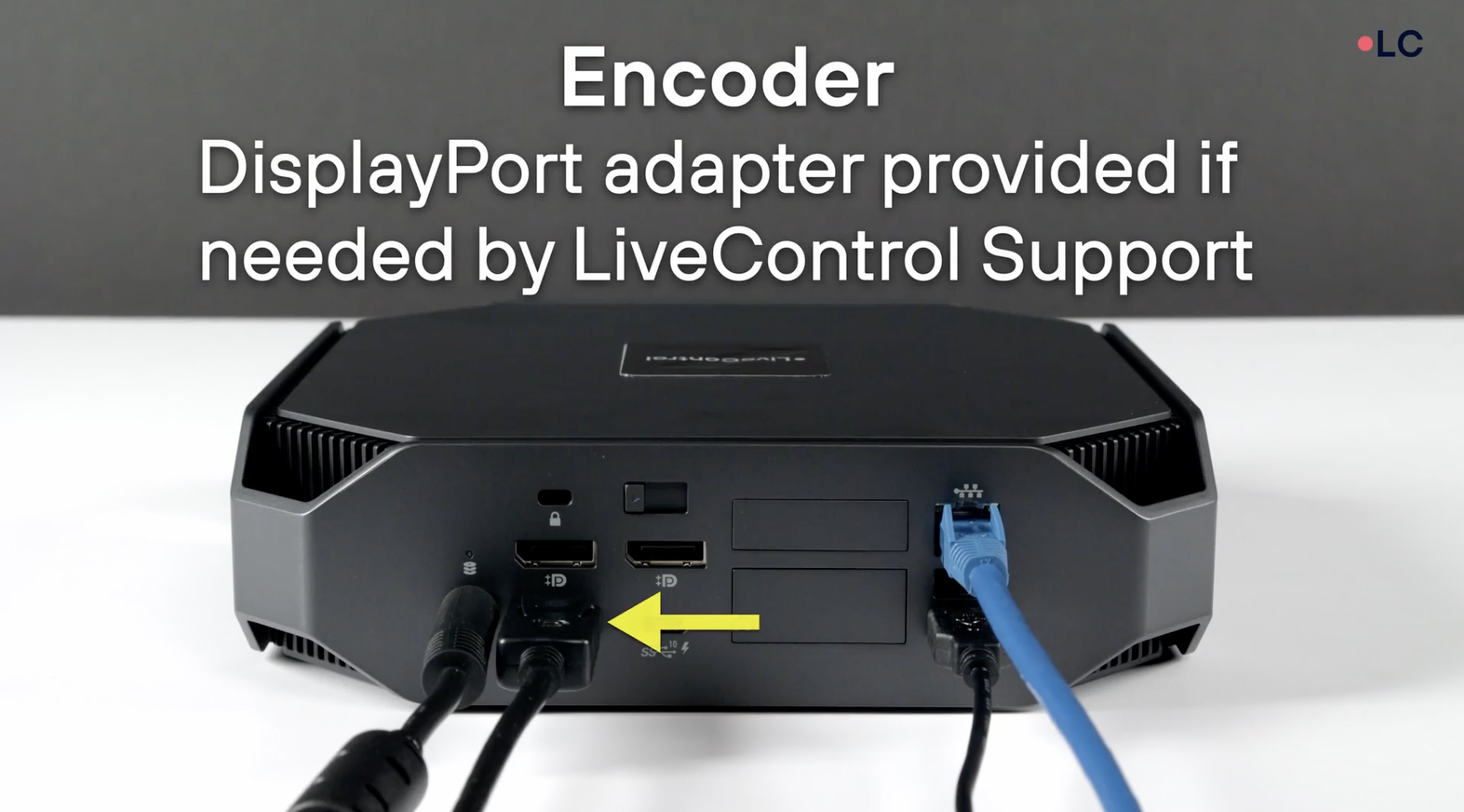

Step 7: Optional - If instructed, connect the DisplayPort to HDMI adapter into the bottom left port on the back of the encoder.

🎉 Your LiveControl setup is now connected!

Once fully connected, please reach out to your account manager or support@livecontrol.io

Name	QTY	Model	Description

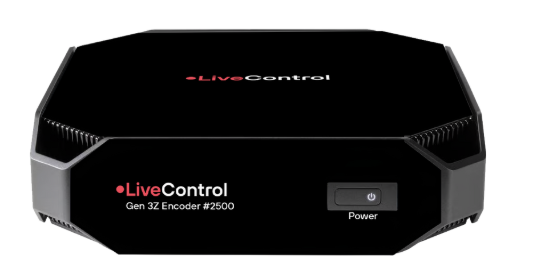

LiveControl Encoder	1	Standard	IP PTZ Camera Encoder. Includes Power Adapter, Power Cable, DisplayPort to HDMI adapter)

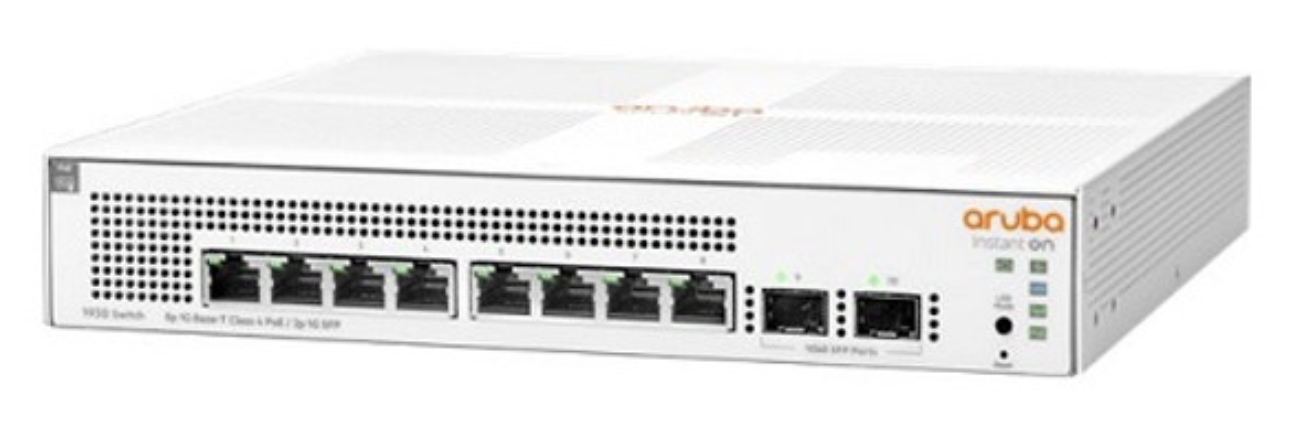

PoE Network Switch	1	Aruba ION 1930 8G 2SFP 124W POE	Sends power, video, and control over a single cat 6 network cable.

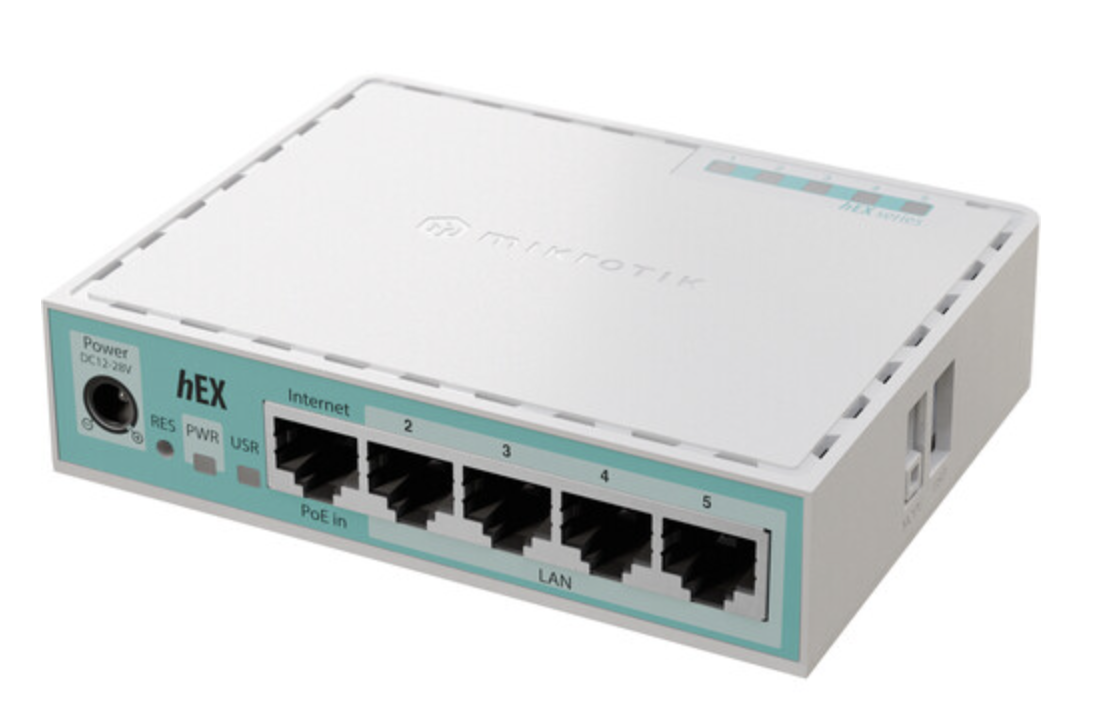

Router	1	MikroTik Hex	Creates dedicated network for IP PTZ Cameras & Encoder
Audio Interface	1	M-Audio M-Track Solo	Connects your soundboard to the LiveControl Encoder
Ethernet Cable (3ft)	2	Cat 6	Connects network switch, router, and encoder together.

Name		QTY	Model	Description
PTZ Camera		1-6	Lumens A61P, LiveControl 35x, ZCAM P2-R1	4K IP Cameras

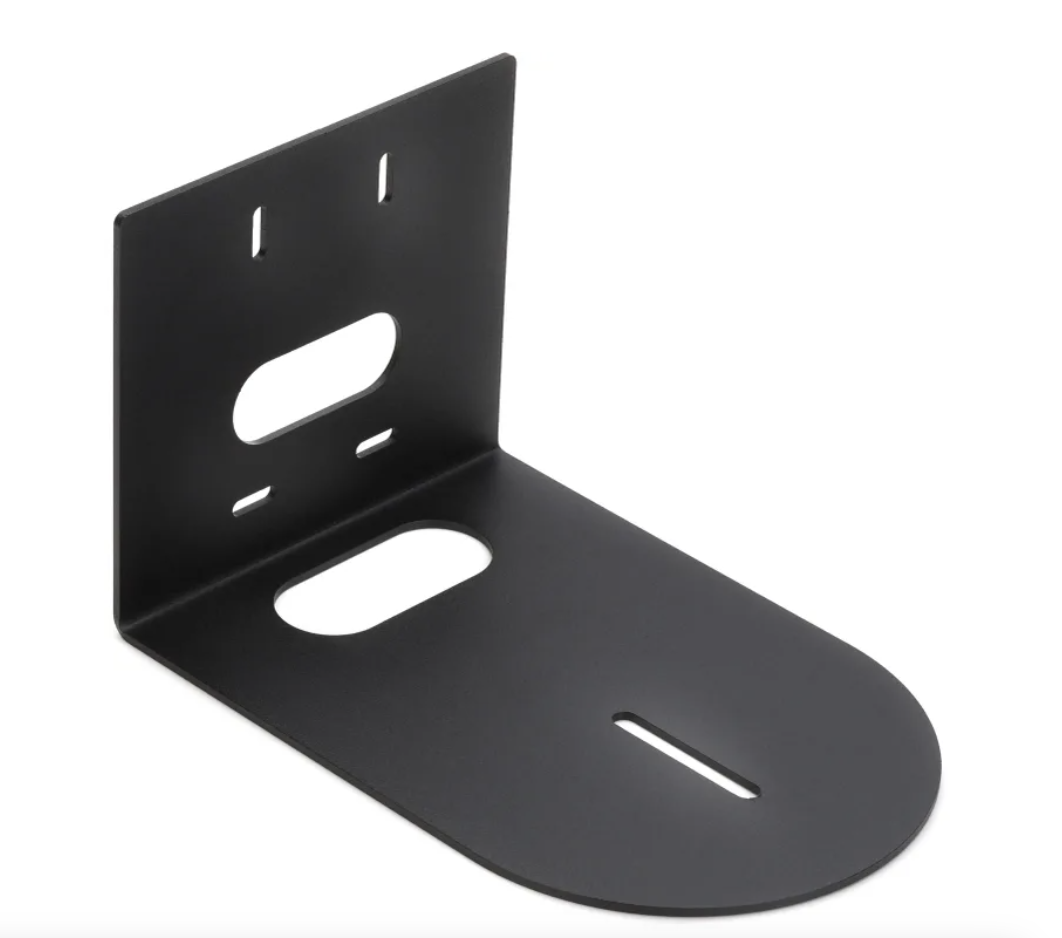

PTZ Camera Wall bracket		1	Aruba ION 1930 8G 2SFP 124W POE	Mounts camera to a vertical wall.

Name		QTY	Model	Description

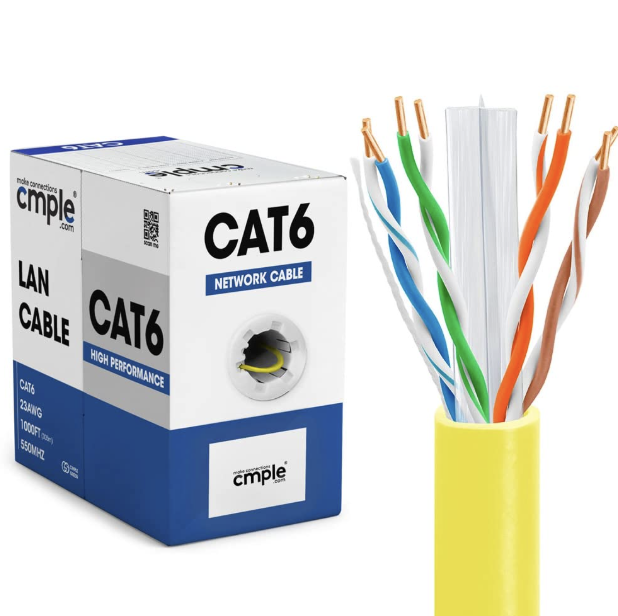

Ethernet Cable		500-1000 ft	Riser Rated Category 6	In-wall cabling for professional installation.

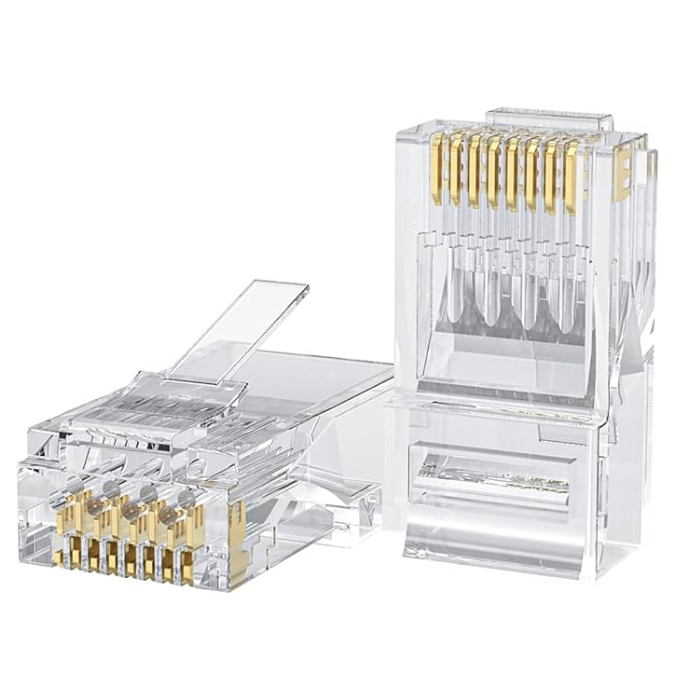

RJ45 Connectors		25	RJ45 Cat 6	Crimps to both ends of cat 6 cable.
